LTLL         Linear and Temporal Logic Programming Language and its Compiler

---

LTLL is a logic programming language based on linear logic and on temporal logic too.

Main features of LTLL :

• Based on linear logic

• Possible temporal logic model for certain problems

• Arrays of facts

The compiler has been developed in operating system Windows (compiler has GUI).

Some example programs: (Source code is in two files - program (*.llp) and goal (*.llg))

• Knight's tour puzzle - program - goal

• Knight's tour puzzle using temporal logic model - program - goal

• Sudoku puzzle - program - goal

• Queens puzzle - program - goal

• Pentomino puzzle - program - goal

• Domino puzzle - program - goal

• Einstein puzzle - program - goal

• A maze - program - goal

• Computation of primes - program - goal

• Water jugs problem - program - goal

• All previous programs in a single file

Performance evaluation

Performance has been tested on five problems:

• Knight's tour problem

• Hamiltonian cycle in a graph

• Dominating set in a graph

• Subset sum problem

• Maximum capacity representatives

The first three problems have been programmed in three languages. The first language is LTLL. The second language is LLP. It is a linear logic language developed at Kobe University in Japan. Programs written in LLP have been executed by their LLPAM emulator. The third language is Prolog. SWI Prolog has been used for execution of programs.

Programs for the other two problems have been programmed in LTLL and Prolog. Programs written in LTLL use neither linear formulas nor temporal logic model. Programs in LLP has not been tested because language LLP is a superset of Prolog and programs not using linear formulas would be practically the same as the programs in Prolog.

All tests have been accomplished on a computer with processor 2.4 GHz Intel Core 2.

Knight's tour problem
Language	Time (sec)	Linear formulas	Temporal logic model
LTLL	18	+	-
LTLL	4	+	+
LLP	72	+	-
Prolog	541	-	-
Prolog (memberchk)	359	-	-

The second program written in Prolog uses the predicate memberchk which is not part of ISO Prolog.

Hamiltonian cycle
Language	1st graph (sec)	2nd graph (sec)	Linear formulas	Temporal logic model
LTLL	21	36	+	-
LTLL	9	17	+	+
LLP	35	63	+	-
Prolog (memberchk)	178	334	-	-



Dominating set
Language	1st graph (sec)	2nd graph (sec)	Linear formulas	Temporal logic model
LTLL	34	15	+	-
LTLL	5	2	+	+
LLP	66	29	+	-
Prolog (memberchk)	421	197	-	-



Subset sum
Language	1st set (sec)	2nd set (sec)
LTLL	82	31
Prolog	345	135



Maximum capacity representatives
Language	1st set (sec)	2nd set (sec)
LTLL	131	52
Prolog	502	171

All test programs

Compiler LTLL - version 1.5

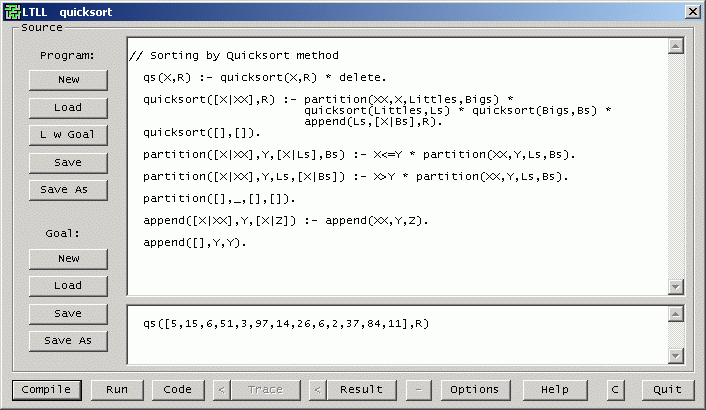

Screenshot of the compiler

---

Arnost Vecerka                                                                                                  12 March, 2008
